Download all the stencils from here: Download stensils and table parts MM and Inch (Avalible as a product here https://rawcnc.com/product/mdf-plates-and-hardware-for-raw-inventive-cnc/)
Click on each link below to see what parts I suggest. I have only added products that are easy to find. The price may be more expensive as most of it is from amazon which is available in every country. If you want to bargain there are also Temu and Aliexpress as examples. Prices change regularly and can exceed the 500 Eur or USD that the machine costs to build.
I am also not responsible if I refer to the wrong product or if you happen to buy the wrong one. I have no responsibility whatsoever regarding this project, this is entirely up to you. We do not have any support at all for this machine. If you have questions you can ask them in the comment section under the inventive video.
UPDATE! Previously I have used Arduino with CNCshield as electronics just as I mention in the video. The software Estlcam has stopped supporting that electronics so you have to go back to version 10 if you want to be able to use that electronics. Another alternative is to use Arduino Mega260 see video example here: https://youtu.be/DFU-zd2rKJA?si=qeX8bjQSb7qmBbE6. CNC electronics is a jungle and there are countless of alternatives…
We build the machine with Arduino and CNC shield. This works but is not optimal. We recommend that you read a little more about GRBL control electronics for cnc machines with Nema23 motors. There are a lot of different solutions. For example, search for “grbl motion controller” or look at Open builds GRBL solutions https://us.openbuilds.com/BlackBox-Motion-Control-System-X32
We will have the hardware and the plates as a product. Go to the shop section to see if we have uploaded them, if not they are comming soon.
Note that when i refere to a Amazon product, it will take you to your country and that product may not be avalible where you are. But all this are pretty standard products and should be easy to find.

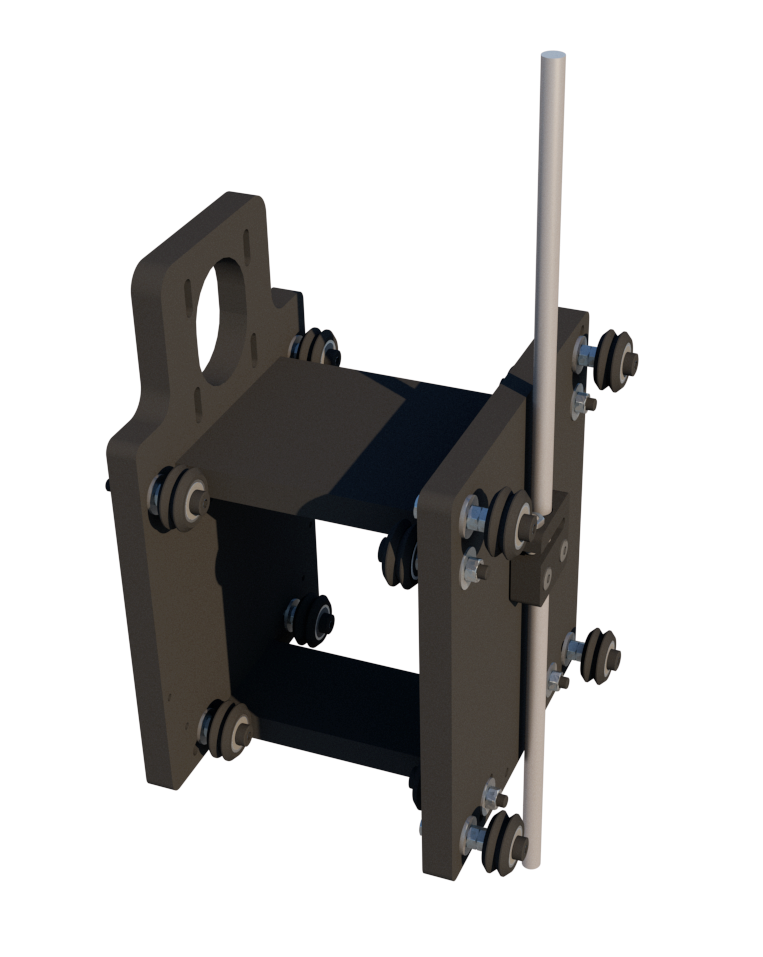

- 2x 12mm MDF 1220x2440mm (your local hardware store. One sheet is for the table and the other is for cutting out the parts. If you don’t have the opportunity to cut out parts with the stencils, they are available for purchase on our website (coming soon).
- Paper for stencils
- 15 meter Angle iron or aluminium angle 20x20x3 (online or at your local hardware store)
- 20x V-grove bearing (Delrin, POM plastic)
- 1x Silicon (glue)
- 1x 300mm aluminium profile 20×60
- 1x 350mm leadskruv and delrin Anti backlash nut (go to https://us.openbuilds.com if you cant find it else where)
- 2x Lock bearing 8mm bore
- 4x Nema 23 Motor 2.5 A (6.35mm shaft)
- 1x Motor coupling 8×6.35mm
- 4x Spacers 40mm
- 1x Powersupply 24v 15A 350W
- 1 Set with arduino, CNC shield and DRV8825 drivers This is cheap but outdated, feel free to search for “grbl motion controller” yourself or take a look at Open builds GRBL solutions https://us.openbuilds.com/BlackBox-Motion-Control-System-X32
- 14x Jumper caps
- 7 Meter Timing belt HTD 3M
- 3x Timing belt pulley for 6.35mm shaft 15 teeth you can choose a pulley with less or more teeth
- 12x ball bearings 608-ZZ 8x22x7
- 6x Aluminium bracket 20×40
- 6x Hole plate 20×40
- 2 meter cable chain15x30
- 1x router clamp 65mm
- 1x Compact router
- 10-14 meter CAT6 Cable or 20 AWG 4-conductor motor cable
Screw, nut and other hardware (Avalible as a product here https://rawcnc.com/product/mdf-plates-and-hardware-for-raw-inventive-cnc/)
- 6x M5 Screw, 8mm
- 20x M5 Screw,14mm
- 14x M5 Screw,20mm
- 12x M5 Screw,25mm
- 46x M5 Screw,30mm
- 20x M5 Screw,35mm
- 4x M5 Screw,65mm
- 140x M5 Nut
- 6x M5 t-Nut
- 64x M5 Large washer (16mm diameter)
- 6x M6 Screw,12mm
- 8x M6 Screw,25mm
- 8x M6 cross dowels
- 8x M8 Screw, 40mm
- 8x M8 Nut
- 12x M8 Large washer (atleast 25mm diameter)
- 18x M8 small washer (16mm diameter)
- 24x wood screw 10mm in height (to fasten angle iron to the x-axis unit)
Optional to fasten reinforcement to the side plates. I mention 40mm spacers in the video but 35mm will be enough.
- 18x 35mm spacers
- 18x M5, 65mm Screw
- 18x M5 Nut
If you have the products mentioned above, you are ready to build a Raw Inventive machine.
